DC Distribution Panel

DC power distribution for battery systems, solar installations, telecom, and UPS applications. MCCB/fuse-based DC protection.

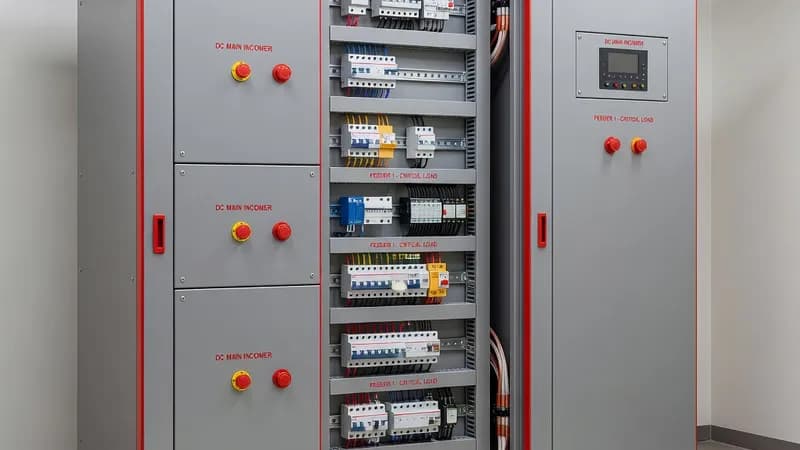

DC Distribution Panel

The DC Distribution Panel is an IEC 61439-2 low-voltage assembly engineered for the secure distribution, isolation, monitoring, and protection of direct current systems used in battery energy storage systems (BESS), solar PV plants, telecom rectifier plants, UPS battery strings, data centres, industrial DC auxiliaries, and infrastructure utilities. Unlike AC systems, DC fault interruption is more demanding because there is no natural current zero-crossing; therefore, the assembly must use DC-rated moulded-case circuit-breakers (MCCBs), fuse-switch disconnectors, and in some cases semiconductor protection devices selected specifically for the system voltage and prospective short-circuit current. Typical DC bus and feeder ratings range from 125 A to 4000 A, with system voltages commonly at 24 VDC, 48 VDC, 110 VDC, 220 VDC, 400 VDC, 750 VDC, 1000 VDC, and 1500 VDC depending on the application. Design and verification are governed primarily by IEC 61439-1 and IEC 61439-2, with related device standards under IEC 60947 for switchgear and controlgear, including IEC 60947-2 for circuit-breakers, IEC 60947-3 for switches, disconnectors and fuse-combination units, and IEC 60947-4-1 where DC motor feeders or control auxiliaries are involved. For PV and utility energy systems, additional coordination may reference IEC 61439-6 when busbar trunking or modular distribution interfaces are used. In hazardous locations or battery rooms, enclosure selection may also consider IEC 60079 requirements, while EMC performance of monitoring, metering, and communications equipment is aligned with IEC 61000. For battery rooms and inverter-adjacent installations, thermal and fire-performance measures may be evaluated alongside IEC 61641 where internal arcing or fault containment is a concern. A modern DC Distribution Panel can incorporate DC MCCBs, NH or gPV fuse bases, battery string isolators, insulation monitoring devices for unearthed systems, DC surge protection devices, shunt-based metering, power analyzers, earth-fault monitoring, protection relays, and communication gateways for BMS, SCADA, or energy management systems. In renewable installations, the panel may separate PV string combiner outputs, inverter DC links, and auxiliary DC loads. In telecom and UPS applications, it may distribute 48 VDC or 110 VDC to rectifiers, battery chargers, and critical loads with redundant incomers and selective coordination. In data centres, DC panels are often used for control power, emergency systems, and battery-backed essential services. Mechanical design must address creepage and clearance distances, conductor derating, heat rise, and fault withstand. Internal separation may be provided as Form 1, Form 2, Form 3, or Form 4 to limit access to live parts and improve service continuity; Form 3b or Form 4b arrangements are common where outgoing feeders require segregation. Short-circuit ratings are verified by design rules, testing, or comparison with reference designs, with assemblies commonly specified for conditional short-circuit currents of 25 kA, 36 kA, 50 kA, 65 kA, or higher depending on the protective device and busbar arrangement. Enclosures are selected to meet IP2X through IP54 or higher as required by the site environment, with corrosion-resistant finishes, cable glanding, forced ventilation or thermal management, and clear labeling for DC polarity, isolation points, and maintenance safety. Patrion designs and manufactures DC Distribution Panels in Turkey for EPC contractors, panel builders, and facility operators requiring IEC-compliant, application-specific DC power distribution solutions.

Components for This Panel

Applicable Standards

Industries Using This Panel

Related Knowledge Articles

Frequently Asked Questions

A DC Distribution Panel distributes, isolates, and protects direct-current feeders in systems such as BESS, solar PV, telecom rectifiers, UPS battery circuits, and industrial control power. In IEC 61439 projects, it is treated as a low-voltage switchgear assembly whose design verification covers temperature rise, dielectric properties, short-circuit withstand, and protection against electric shock. Typical devices include DC MCCBs, fuse-switch disconnectors, SPDs, insulation monitoring devices, shunts, and meters. The key design difference from AC panels is DC fault interruption: devices must be specifically rated for the system voltage and prospective fault current because there is no natural zero-crossing. For this reason, IEC 60947-2 and IEC 61439-1/2 are central to correct selection and assembly verification.
The primary standards are IEC 61439-1 for general rules and IEC 61439-2 for power switchgear and controlgear assemblies. The incorporated devices are usually selected to IEC 60947 series standards, especially IEC 60947-2 for circuit-breakers and IEC 60947-3 for switches and disconnectors. For PV installations, equipment coordination may also reference IEC 62548 and the inverter/battery interface requirements of the specific project. EMC-sensitive monitoring or communication modules should comply with IEC 61000. If the assembly is used in a battery room, utility room, or hazardous area, related site standards such as IEC 60079 or fire containment practices such as IEC 61641 may also be relevant depending on the risk assessment and project specification.
The most common and technically appropriate devices are DC-rated MCCBs, NH fuse-switches, gPV fuse holders for PV strings, and DC-rated load break switches. Selection depends on voltage, current, and fault level. For example, 48 VDC telecom feeders often use compact DC MCCBs or fuse protection, while 1000 VDC and 1500 VDC PV or BESS systems typically require dedicated high-voltage DC breakers or fuse arrays with tested arc-quenching capability. Where continuity is critical, selective coordination between incomer and outgoing protection is essential. IEC 60947-2 defines the performance expectations for circuit-breakers, but the manufacturer’s DC derating curves, breaking capacity, and time-current characteristics must be reviewed carefully for each installation.
The required short-circuit rating depends on the available fault current at the installation point and the protective device coordination strategy. In practice, DC distribution panels are commonly specified with conditional short-circuit ratings of 25 kA, 36 kA, 50 kA, or 65 kA, and sometimes higher for utility or BESS applications. Under IEC 61439-1/2, the assembly must be verified for the declared short-circuit withstand level using design rules, test evidence, or a validated reference design. The rating must consider busbar geometry, device let-through energy, cable connections, and enclosure integrity. A panel with adequate current rating but insufficient short-circuit withstand is not compliant or safe for service.
Yes, when service continuity, personnel protection, or feeder segregation is required. IEC 61439 allows internal separation forms such as Form 1, Form 2, Form 3, and Form 4. In DC panels, Form 3b or Form 4b is often preferred for critical infrastructure, because it separates outgoing functional units and busbars to reduce the risk of accidental contact and limit outages during maintenance. The selection depends on operational requirements, cable access strategy, and the level of fault containment expected by the client. Internal separation does not replace arc-fault protection or proper DC isolation, but it significantly improves maintainability and reduces exposure during troubleshooting or expansion.
Yes, and in many applications it should. Unearthed or floating DC systems, such as many battery and PV configurations, often require an insulation monitoring device to detect loss of insulation before a dangerous fault develops. DC surge protection devices are also important because inverter switching, lightning-induced transients, and long cable runs can produce overvoltages. In telecom and UPS systems, these devices protect rectifiers, batteries, and downstream electronic loads. A well-designed IEC 61439 DC panel will integrate IMDs, Type 1/Type 2 SPDs where appropriate, and monitoring interfaces to SCADA or BMS. Device selection must follow the system earthing arrangement and the manufacturer’s rated impulse withstand and discharge capacity.
The enclosure IP rating depends on the environment, cable entry method, and maintenance access. Indoor electrical rooms often use IP31 or IP42, while harsher utility, renewable, or outdoor-adjacent installations may require IP54 or higher. Under IEC 61439, the enclosure must support the declared assembly performance, including heat dissipation, accessibility, and mechanical strength. For battery and energy storage rooms, the design should also account for ventilation strategy, chemical exposure, and any site-specific fire or explosion risk assessment. IP rating alone is not enough; creepage, clearance, cable sealing, and thermal management must be addressed together to maintain compliance and reliability.
The biggest difference is fault interruption and polarity management. In AC systems, current naturally crosses zero many times per second, which helps interrupt arcs. In DC systems, the arc persists much longer, so breakers, switches, and fuses must be explicitly DC-rated and coordinated for the system voltage. DC panels also require polarity identification, insulation monitoring for floating systems, and careful busbar design to control heating and voltage drop. While AC boards often rely on standardized 400/230 V distribution structures, DC panels may operate from 24 VDC control power up to 1500 VDC PV and BESS circuits. Therefore, component selection, clearances, and protection philosophy are fundamentally different.
