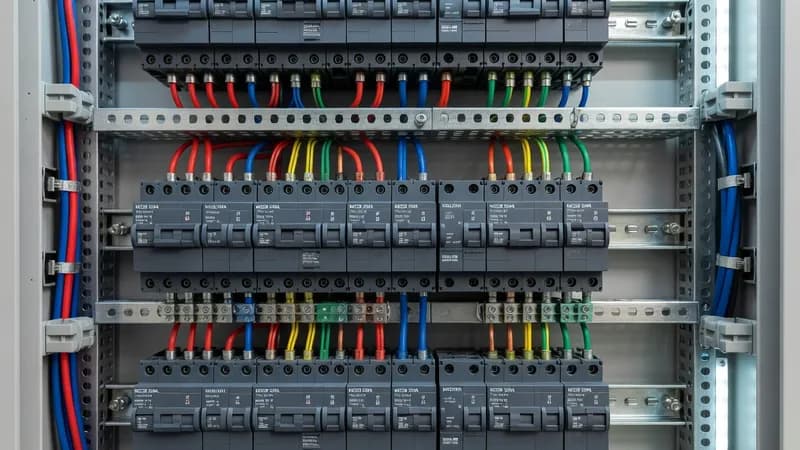

Moulded Case Circuit Breakers (MCCB) in Main Distribution Board (MDB)

Overview

Moulded Case Circuit Breakers (MCCB) are one of the most important protective devices used in Main Distribution Board (MDB) assemblies, where the design objective is to distribute power safely, maintain continuity of service, and coordinate protection across incomers, bus sections, and outgoing feeders. In IEC 61439-2 compliant MDBs, MCCBs are typically applied from 16 A up to 1600 A or higher, with 3-pole and 4-pole versions selected according to system earthing arrangement, neutral switching requirements, and load characteristics. Common applications include incomer protection, generator incomers, bus couplers, feeder protection for MCCs, VFDs, soft starters, HVAC plant, pump rooms, UPS systems, and sub-distribution panels. For panel builders and EPC contractors, MCCB selection in an MDB must start with the electrical coordination study. The breaker’s rated operational current, rated insulation voltage, Icu, Ics, and optional Icw values must be matched to the prospective short-circuit current at the installation point. In practice, many MDBs are built around busbar ratings such as 630 A, 800 A, 1250 A, 1600 A, 2000 A, 3200 A, and 4000 A, depending on the building load and redundancy strategy. High-performance electronic-trip MCCBs with adjustable long-time, short-time, instantaneous, and earth-fault settings are preferred where discrimination and selectivity are critical. Thermal-magnetic MCCBs may still be used for simpler feeder circuits, but digital trip units provide superior protection grading and allow better integration with energy management systems. IEC 61439-1 and IEC 61439-2 require verification of temperature rise, short-circuit withstand strength, dielectric properties, and clearances/creepage within the assembly. Since MCCBs add local heat loss inside a confined enclosure, thermal management is a major design factor in MDBs, especially in compact floor-standing panels with high device density or multiple communication modules. Derating may be required when devices are installed in stacked arrangements or when ambient temperature exceeds standard test conditions. Proper spacing, vertical segregation, forced ventilation, and well-designed busbar chambers help maintain compliance and reliability. The architecture of an MDB also depends on the form of internal separation required under IEC 61439-2. Form 1 through Form 4 arrangements are used to define how busbars, functional units, and terminals are segregated for safety and maintainability. In higher-availability installations, MCCB feeders may be organized to permit maintenance with limited shutdown, while bus-section and incomer compartments are arranged to improve fault containment and operational flexibility. Front-operated MCCBs with rotary handles, door interlocks, shunt trip, undervoltage release, auxiliary contacts, and motor operators are common where operational safety and remote control are required. Communication-ready MCCBs are increasingly specified for modern MDBs because they support SCADA and BMS integration through Modbus, Ethernet gateways, or digital trip-unit communication modules. These devices can deliver current, power, energy, fault, and alarm data for facility monitoring, preventive maintenance, and power quality analysis. This is especially valuable in hospitals, data centers, airports, commercial towers, industrial plants, and infrastructure projects where uninterrupted distribution is essential. When MDBs feed drives, soft starters, and sensitive electronic loads, the MCCB must also be coordinated with inrush currents, motor starting profiles, and downstream protection devices to prevent nuisance tripping. Where arc flash risk is a concern, designs may also be reviewed against IEC 61641 for low-voltage switchgear and controlgear assemblies under internal arc conditions. In hazardous locations or adjacent process areas, the wider project may require consideration of IEC 60079, although this is application-specific rather than a standard MDB requirement. A well-engineered MCCB-based MDB combines reliable short-circuit protection, selective coordination, thermal stability, and digital visibility in a single assembly. The result is a scalable distribution panel that meets IEC 61439 performance requirements while supporting long-term maintainability and safe operation across commercial, industrial, and critical infrastructure environments.

Key Features

• Moulded Case Circuit Breakers (MCCB) rated for Main Distribution Board (MDB) operating conditions
• IEC 61439 compliant integration and coordination
• Thermal management within panel enclosure limits
• Communication-ready for SCADA/BMS integration
• Coordination with upstream and downstream protection devices

Specifications

Other Components for Main Distribution Board (MDB)

Other Panels Using Moulded Case Circuit Breakers (MCCB)

Frequently Asked Questions
