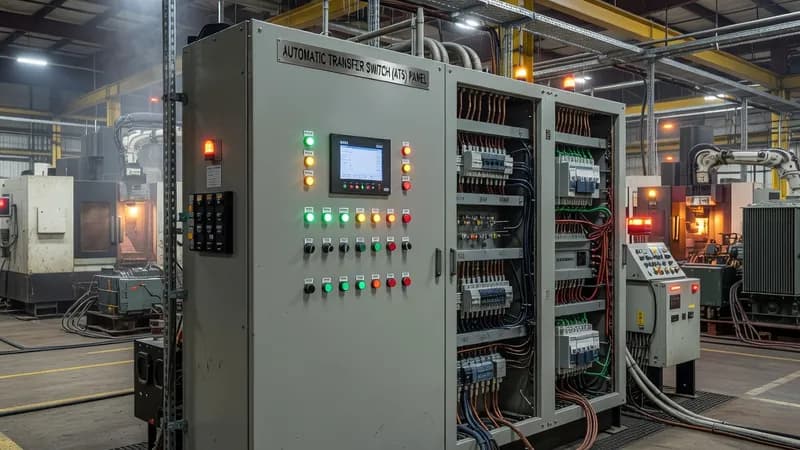

Automatic Transfer Switch (ATS) Panel for Industrial Manufacturing

Overview

Automatic Transfer Switch (ATS) Panel assemblies for Industrial Manufacturing are engineered to maintain continuity of supply between utility and standby power sources in facilities where process interruption can cause production loss, equipment damage, or safety hazards. Typical installations include packaging lines, food and beverage plants, automotive assembly, metal fabrication, plastics processing, warehouses, utilities, and discrete manufacturing plants with critical auxiliary loads such as compressors, chilled water pumps, HVAC, fire systems, PLC rooms, and network infrastructure. These panels are commonly built with IEC 61439-2 verified low-voltage assemblies and coordinated with IEC 60947-6-1 transfer switching devices, ensuring suitability for automatic source transfer under defined operating and fault conditions. In industrial environments, ATS panels are rarely standalone devices. They are often integrated with MCCs, MDBs, PCCs, generator control panels, VFD panels, soft starter panels, APFC systems, and power monitoring systems. Depending on the plant architecture, the ATS may use contactor-based or circuit breaker-based transfer logic, with upstream incomers selected from MCCBs or ACBs rated from 100 A to 6300 A, and short-circuit withstand ratings commonly verified up to 50 kA, 65 kA, 80 kA, or higher depending on the prospective fault level and coordination study. For critical process loads, closed-transition transfer, open-transition transfer, and bypass-isolation arrangements may be specified to minimize downtime and support maintenance without full plant shutdown. Panel construction must reflect the industrial duty environment. Indoor enclosures are often rated to IP31, IP42, or IP54, while dust-heavy or washdown areas may require IP55 or IP65 with appropriate gland plates, gaskets, anti-condensation heaters, thermostats, and corrosion-resistant finishes. Where hazardous atmospheres exist, the surrounding installation may invoke IEC 60079 requirements, although the ATS panel itself is usually located in a safe area unless specially engineered. For plants with arc-flash concerns, internal separation and arc containment can be specified in line with IEC/TR 61641, along with form-of-separation arrangements such as Form 2b, Form 3b, or Form 4 to improve serviceability and reduce exposure during maintenance. Control and monitoring features typically include PLC-based transfer logic, redundant source sensing, phase sequence and phase loss protection, undervoltage/overvoltage relays, frequency supervision, engine-start contacts, load test functions, event logging, and Modbus RTU/TCP or Ethernet-based communication to SCADA and BMS platforms. Industrial Manufacturing users often require remote annunciation, dry contact outputs for alarm and status, and local HMI indication for source availability, breaker position, and transfer condition. Synchronization, voltage matching, and generator warm-up/cool-down timers may be added where parallel or delayed transfer strategies are used. Engineering of the ATS panel must consider ambient temperature, vibration, dust, electromagnetic interference, maintenance access, cable segregation, and selectivity with upstream and downstream protection devices. IEC 61439-1 and IEC 61439-2 impose requirements for temperature rise, dielectric properties, clearances, creepage, and short-circuit performance, while component selection follows the relevant IEC 60947 product standards for breakers, contactors, motor starters, and protective devices. For industrial manufacturing operators, the result is a robust automatic source transfer solution that preserves production continuity, supports safe maintenance, and integrates cleanly into modern power distribution and automation systems.

Key Features

• Automatic Transfer Switch (ATS) Panel configured for Industrial Manufacturing requirements
• Industry-specific environmental ratings and protections
• Compliance with sector-specific standards and regulations
• Optimized component selection for industry applications
• Integration with industry-standard control and monitoring systems
