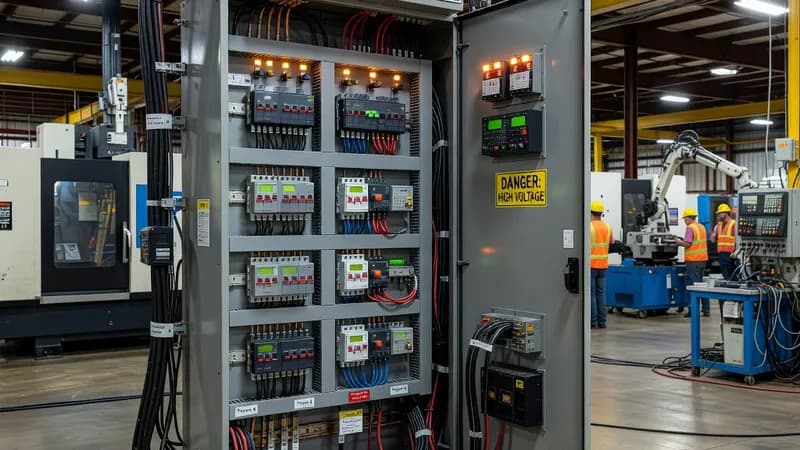

Main Distribution Board (MDB) for Industrial Manufacturing

Main Distribution Board (MDB) assemblies engineered for Industrial Manufacturing applications, addressing industry-specific requirements and compliance standards.

Main Distribution Board (MDB) for Industrial Manufacturing

Overview

Main Distribution Board (MDB) assemblies for industrial manufacturing facilities are the primary low-voltage power hubs that receive utility, transformer, or generator incomers and distribute power to process lines, utilities, HVAC, compressed air, pumping, lighting, and automation loads. In this sector, MDBs are typically engineered to IEC 61439-2 as type-tested or verified low-voltage switchgear and controlgear assemblies, with design verification covering temperature rise, dielectric properties, short-circuit withstand, clearances and creepage distances, and mechanical operation. Depending on the installation scope, related requirements may also involve IEC 61439-1 for general assembly rules, IEC 61439-3 for distribution boards intended for ordinary persons in auxiliary areas, and IEC 61439-6 where busbar trunking interfaces are used to feed downstream sections or production areas. Industrial manufacturing environments often demand high reliability, selectable maintainability, and clear segregation of critical loads. MDBs are commonly built with air circuit breakers (ACBs) on incomers and bus couplers for ratings from 1600 A up to 6300 A, with molded case circuit breakers (MCCBs) or switch-disconnector feeders for outgoing circuits from 63 A to 1600 A. Protection relays may be integrated for overcurrent, earth fault, under/overvoltage, frequency, and selective coordination functions, especially when the board is part of a plant-wide distribution strategy. For motor-heavy facilities, the MDB frequently supplies MCC panels, VFD panels, soft starters, and protection/automation panels, which requires careful consideration of inrush, harmonics, and starting duty. Short-circuit ratings in industrial plants are a critical design parameter, with assemblies commonly specified at 50 kA, 65 kA, or 100 kA for 1 second, depending on transformer impedance and upstream fault levels. Form of separation is selected to match operational philosophy and maintenance strategy; Form 2, Form 3b, and Form 4 are frequently used to isolate functional units and improve safety during service work. Thermal management is equally important because continuous process loads and high ambient temperatures can drive derating. Enclosures may be IP31, IP42, IP54, or higher, with corrosion-resistant finishes for dusty, humid, or chemically aggressive areas. Where manufacturing plants include hazardous zones, nearby auxiliary boards may require compliance with IEC 60079, while the MDB itself is normally installed outside classified areas. Industrial MDBs often incorporate metering, power quality monitoring, and SCADA/BMS communications via Modbus RTU, Modbus TCP, or Profibus/Profinet gateways. When facilities operate nonlinear loads such as VFDs, rectifiers, servo drives, welding machines, or UPS systems, harmonic mitigation becomes essential; solutions may include passive harmonic filters, detuned capacitor banks, active filters, or separate transformer feeds. APFC sections are often integrated into the MDB or as adjacent panels to maintain power factor compliance and reduce utility penalties. For arc-flash risk mitigation and personnel safety, internal arc containment or testing to IEC 61641 may be specified in demanding manufacturing environments. A well-engineered industrial manufacturing MDB must balance compact footprint, maintainability, expandability, and lifecycle performance. Patrion designs and manufactures MDB assemblies in Turkey for OEMs, EPC contractors, and plant operators, aligning component selection, busbar sizing, protection coordination, and documentation with IEC 61439 requirements and real plant operating conditions. The result is a robust distribution platform that supports continuous production, simplifies maintenance, and provides the electrical resilience required by modern industrial manufacturing facilities.

Key Features

  • Main Distribution Board (MDB) configured for Industrial Manufacturing requirements
  • Industry-specific environmental ratings and protections
  • Compliance with sector-specific standards and regulations
  • Optimized component selection for industry applications
  • Integration with industry-standard control and monitoring systems

Specifications

PropertyValue
Panel TypeMain Distribution Board (MDB)
IndustryIndustrial Manufacturing
Base StandardIEC 61439-2
EnvironmentIndustry-specific ratings

Other Panels for Industrial Manufacturing

Power Control Center (PCC)

High-capacity power distribution for industrial facilities. Controls and distributes incoming power to MCC, APFC, and downstream loads.

Motor Control Center (MCC)

Centralized motor control with starters, contactors, overloads, and VFDs in standardized withdrawable/fixed functional units.

Power Factor Correction Panel (APFC)

Automatic capacitor switching for reactive power compensation. Thyristor or contactor-switched, detuned or standard configurations.

Automatic Transfer Switch (ATS) Panel

Automatic changeover between mains and generator/UPS. Open or closed transition, with or without bypass.

Variable Frequency Drive (VFD) Panel

Enclosed VFD assemblies with input protection, line reactors, EMC filters, output reactors, and bypass options.

Metering & Monitoring Panel

Energy metering, power quality analysis, and multi-circuit monitoring with communication gateways.

PLC & Automation Control Panel

Process and machine control panels housing PLCs, I/O modules, relays, HMIs, and communication infrastructure.

Busbar Trunking System (BTS)

Prefabricated busbar distribution per IEC 61439-6. Sandwich or air-insulated, aluminum or copper.

Soft Starter Panel

Enclosed soft starter assemblies for reduced voltage motor starting with torque control, ramp-up/down profiles, and bypass contactor options.

Harmonic Filter Panel

Active or passive harmonic filtering to mitigate THD from non-linear loads. Tuned LC filters, active filters, or hybrid configurations.

Capacitor Bank Panel

Fixed or automatic capacitor bank assemblies for bulk reactive power compensation in industrial and utility applications.

Custom Engineered Panel

Bespoke panel assemblies for non-standard requirements — special ratings, unusual form factors, multi-function combinations.

Other Industries Using Main Distribution Board (MDB)

Commercial Buildings

MDB, lighting distribution, APFC, ATS, metering, BTS, capacitor bank, BMS integration

Data Centers

High-reliability MDB, PCC, ATS (STS), metering, APFC, BTS, DC distribution

Healthcare & Hospitals

ATS (critical power), MDB, generator control, lighting, metering, APFC

Oil & Gas

Ex-rated panels, MCC, PCC, VFD, generator control, soft starters, ATEX/IECEx compliance

Water & Wastewater

MCC, VFD panels, PLC automation, APFC, generator control, soft starters

Mining & Metals

Rugged MCC, PCC, VFD panels, generator panels, soft starters, harmonic filters

Renewable Energy

MDB, metering, APFC, ATS, PLC, DC distribution, capacitor banks

Marine & Offshore

Marine-certified panels, MCC, generator sync, ATS, PLC, classification society compliance

Infrastructure & Utilities

MDB, ATS, metering, BTS, lighting distribution, DC distribution

Food & Beverage

Washdown-rated panels (IP65+), MCC, VFD, APFC, PLC, soft starters, harmonic filters

Pharmaceuticals

Cleanroom-compatible panels, MCC, VFD, APFC, PLC, soft starters, harmonic filters

Frequently Asked Questions

The primary standard is IEC 61439-2, which covers power switchgear and controlgear assemblies such as main distribution boards used in industrial installations. The standard requires verified design parameters including temperature rise, dielectric performance, short-circuit withstand, and clearances/creepage. If the assembly includes distribution sections intended for ordinary persons in ancillary areas, IEC 61439-3 may also apply. For busbar trunking interfaces feeding production zones, IEC 61439-6 becomes relevant. A properly engineered MDB should be documented with a verified design, routine test results, and a full technical dossier.
Industrial manufacturing MDBs are commonly specified at 50 kA, 65 kA, or 100 kA for 1 second, but the correct rating depends on transformer size, impedance, cable length, and upstream protection. The board must have a short-circuit withstand current equal to or greater than the prospective fault level at the installation point. ACB incomers, busbar system, outgoing MCCBs, and enclosure supports all need to be coordinated to the same fault duty. Verification under IEC 61439 is essential, and selective coordination with upstream protection relays is recommended to limit downtime during faults.
A manufacturing MDB usually includes an incoming ACB or MCCB, bus coupler, outgoing MCCBs or switch-disconnectors, metering, protection relays, and control power supplies. It often feeds MCC panels, VFD panels, soft starters, APFC panels, and auxiliary distribution boards. Where process continuity is critical, feeder-level earth fault and overload protection are configured with selective coordination. High-quality MDBs also include CTs, multifunction meters, surge protection devices, and communication modules for SCADA or energy management integration.
VFDs and soft starters introduce non-linear and dynamic loading that directly impacts busbar sizing, thermal performance, and power quality. VFDs can generate harmonics, so the MDB may require passive harmonic filters, detuned capacitor banks, or active harmonic filters to maintain acceptable total harmonic distortion. Soft starters create high starting currents but lower than direct-on-line motor starts, so feeder protection and cable sizing still must account for starting duty. IEC 60947 governs many switchgear devices used in these circuits, while the assembly itself remains subject to IEC 61439 verification.
The choice depends on operational risk and maintenance requirements. Form 2 separation is suitable where basic segregation is sufficient, but industrial plants often prefer Form 3b or Form 4 to isolate functional units and allow safer maintenance with reduced exposure to live parts. Form 4 provides the highest level of internal segregation between busbars, functional units, and terminals, which is beneficial in continuous-process facilities. The selected form should be matched to the shutdown strategy, fault containment expectations, and available maintenance procedures.
In many industrial manufacturing facilities, yes. Where fault energy is high or maintenance access is frequent, internal arc containment or testing to IEC 61641 is often specified to improve personnel safety. This does not replace proper protection coordination, but it helps limit the consequences of an internal arc event. Additional measures may include arc-flash relays, zone selective interlocking, fast-acting ACB trip units, and remote racking or remote switching. The final requirement depends on the plant’s risk assessment and electrical safety policy.
Yes. APFC capacitor banks are frequently integrated into or installed adjacent to an MDB to improve power factor and reduce utility penalties. However, when nonlinear loads such as VFDs, welders, UPS systems, or rectifiers are present, detuned capacitor banks or harmonic filters should be used to prevent resonance and capacitor stress. In plants with significant harmonic distortion, active harmonic filters may be preferable. The MDB design must account for thermal loading, capacitor inrush, protection coordination, and proper ventilation.
Industrial manufacturing MDBs often operate in dusty, humid, or mildly corrosive environments, so enclosure selection and finish are critical. Typical protection degrees range from IP31 and IP42 to IP54, depending on the room conditions and cleaning regime. Anti-condensation heaters, filtered ventilation, and corrosion-resistant powder coating are commonly used. If the facility includes hazardous areas, adjacent equipment may need IEC 60079 compliance, but the MDB is usually installed outside classified zones. Thermal derating must also be considered when ambient temperatures exceed standard design assumptions.
